| Specifications | |
|---|---|

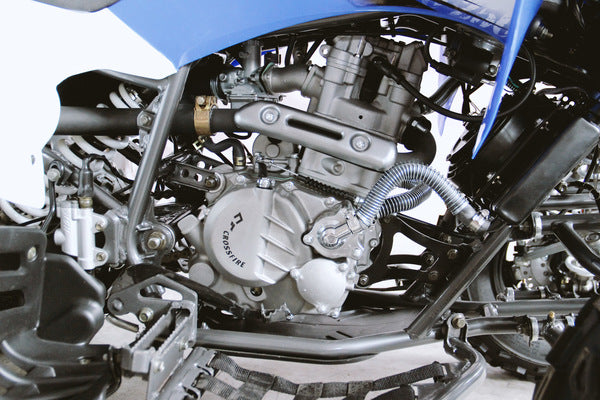

| Engine | ZS CB 250cc, 4valve |
| Cooling | Water Cooled |
| Compression | 10.5:1 |
| Bore x Stroke | 70mm x 65mm |

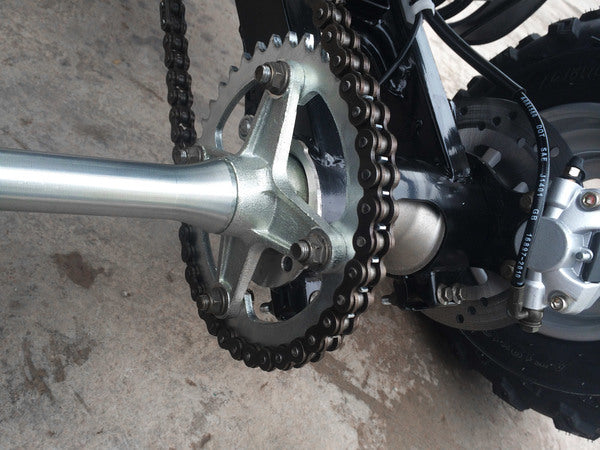

| Drive Train | Chain |
| Carburettor | Mikuni Carburettor 30mm |
| Transmission | 5-speed; Wet Multi-plate clutch, 4 Foward gears and 1 Reverse gear |
| Ignition | AC-CDI |
| Clutch Type | Wet Multi-plate |
| Starting System | Electric Start |
| Fuel Delivery | Mikuni PZ30 |
| Speedometer | Yes |
| Turning Lights | No |
| Rear View Mirror | No |
| Horn | No |
| Material | |
| Frame | Steel |
| Suspension / Brakes / Tyres | |

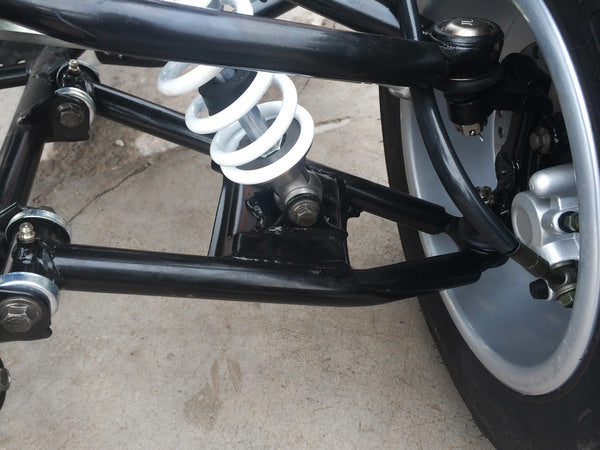

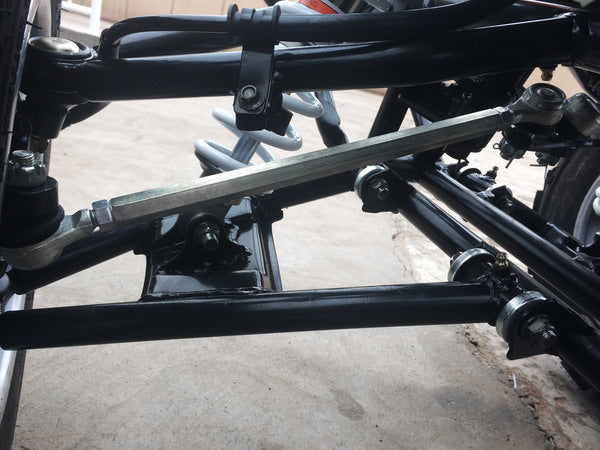

| Suspension Front | Oil damper with air-cell |
| Suspension Rear | Oil damper |
| Brakes Front | Hydraulic disc |
| Brakes Rear | Hydraulic disc |
| Tyres / Rim Front | 21×7-10′ Alloy rim, off-road |
| Tyres / Rim Rear | 19×10-9′ Alloy rim, off-road |

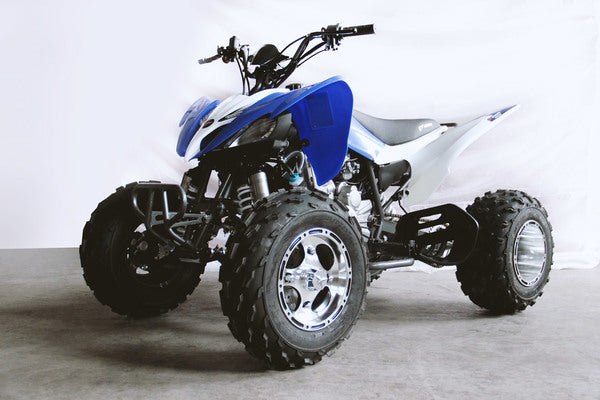

| Note: 2018 alloy rims vary from the ones pictured. Please contact Crossfire office for exact photos. | |
| Dimensions | |
| Front Track | 820mm |
| Rear Track | 830mm |
| Wheelbase | 1140mm |
| Seat Height | 790mm |
| Product Size | 1675mm × 1060mm × 1065mm |
| Packaging Dimension | 1460mm × 880mm × 860mm |
| Tank Capacity | 9L |
